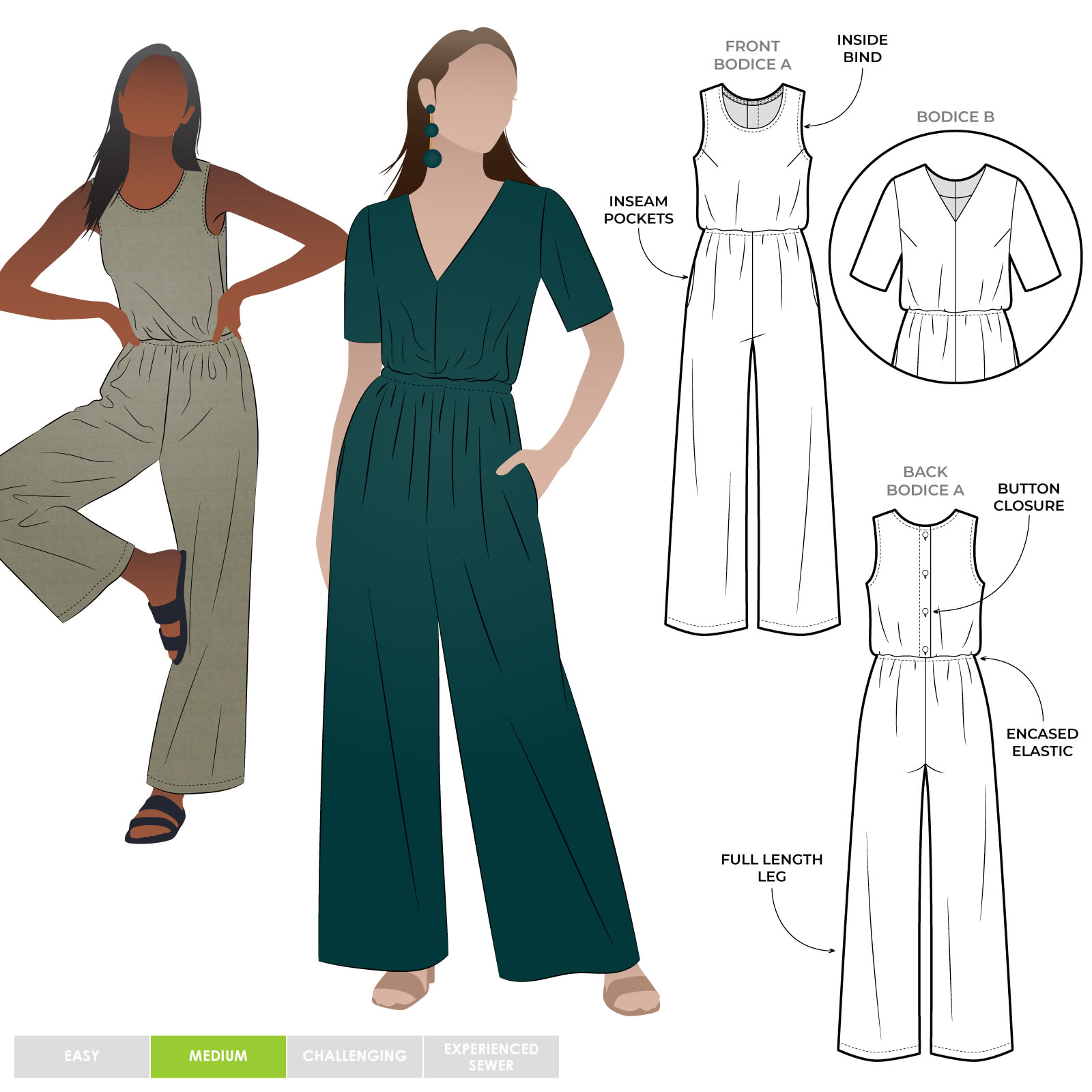

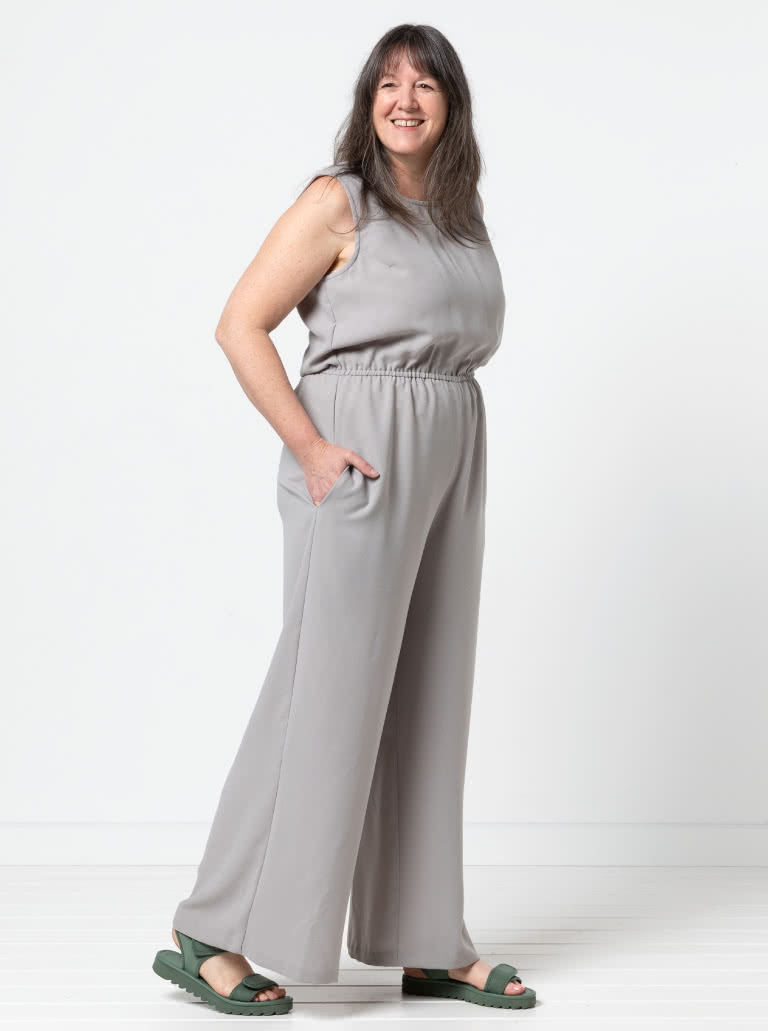

Bodice A is sleeveless with a round neck and feature back opening with buttons

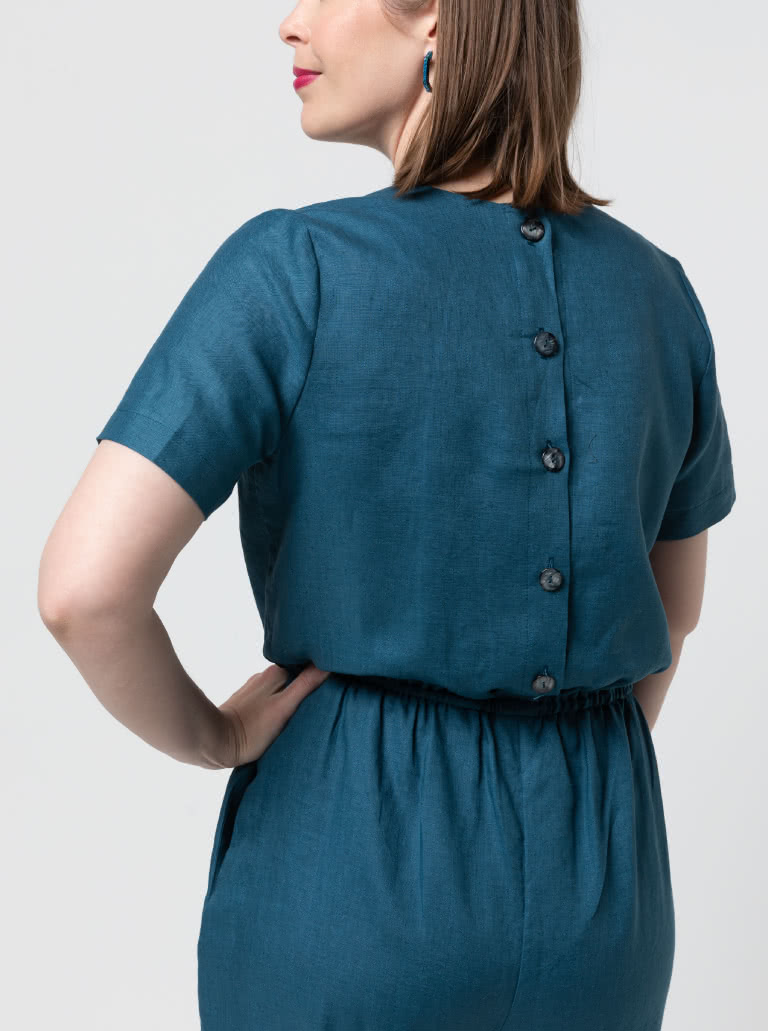

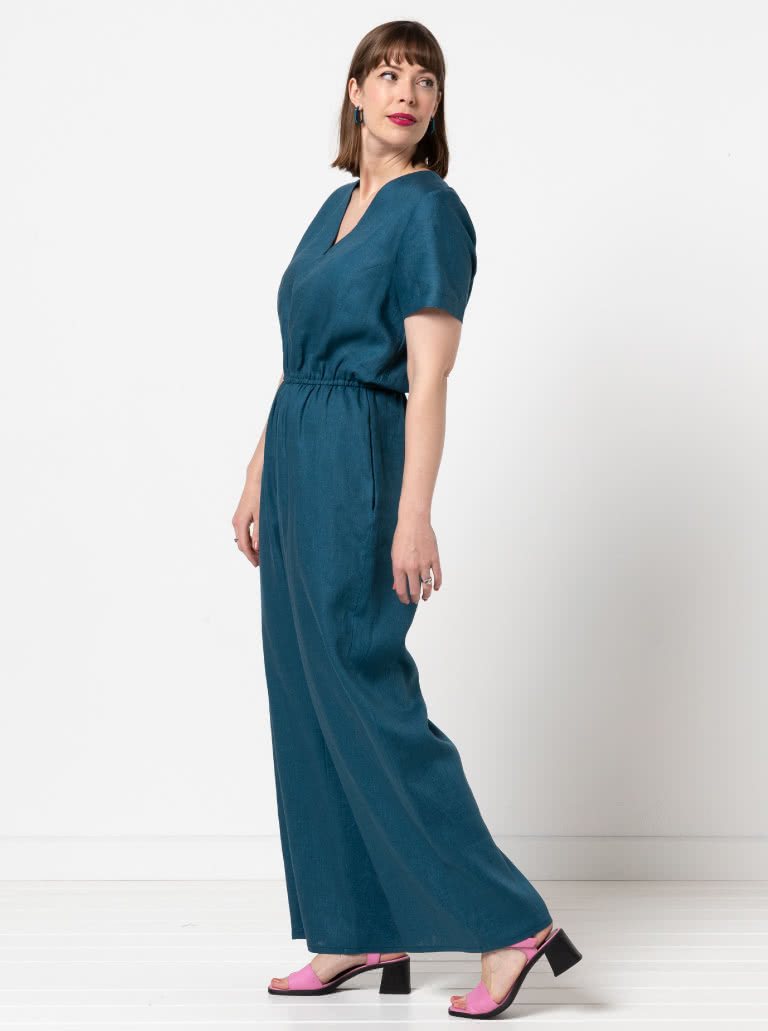

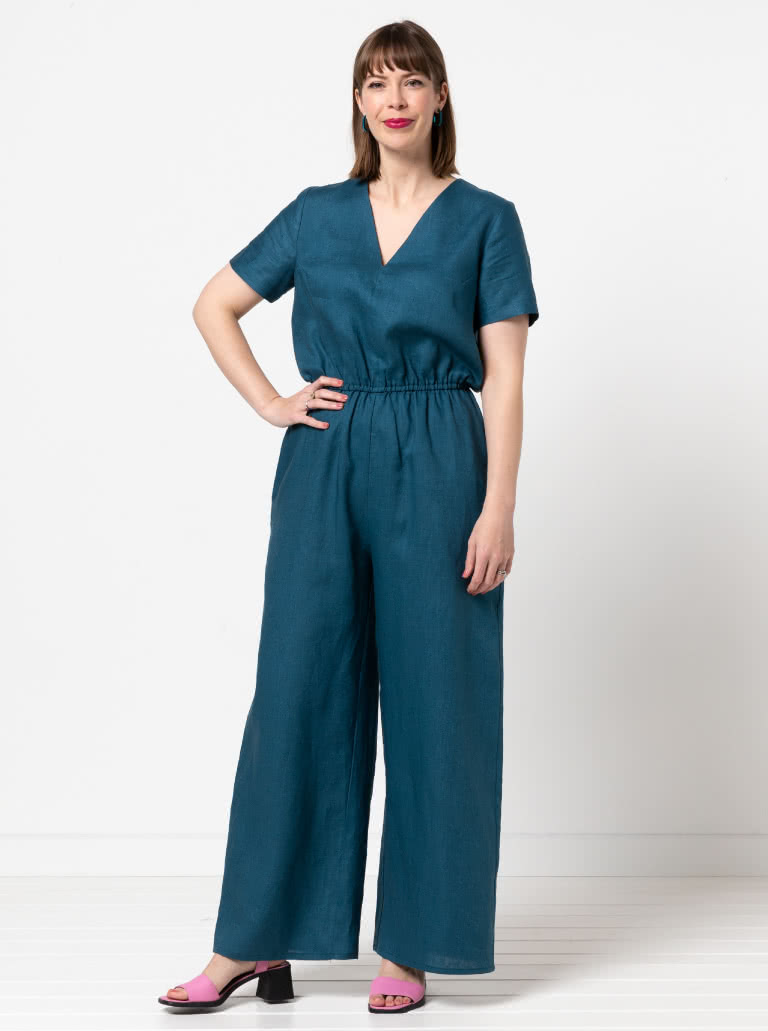

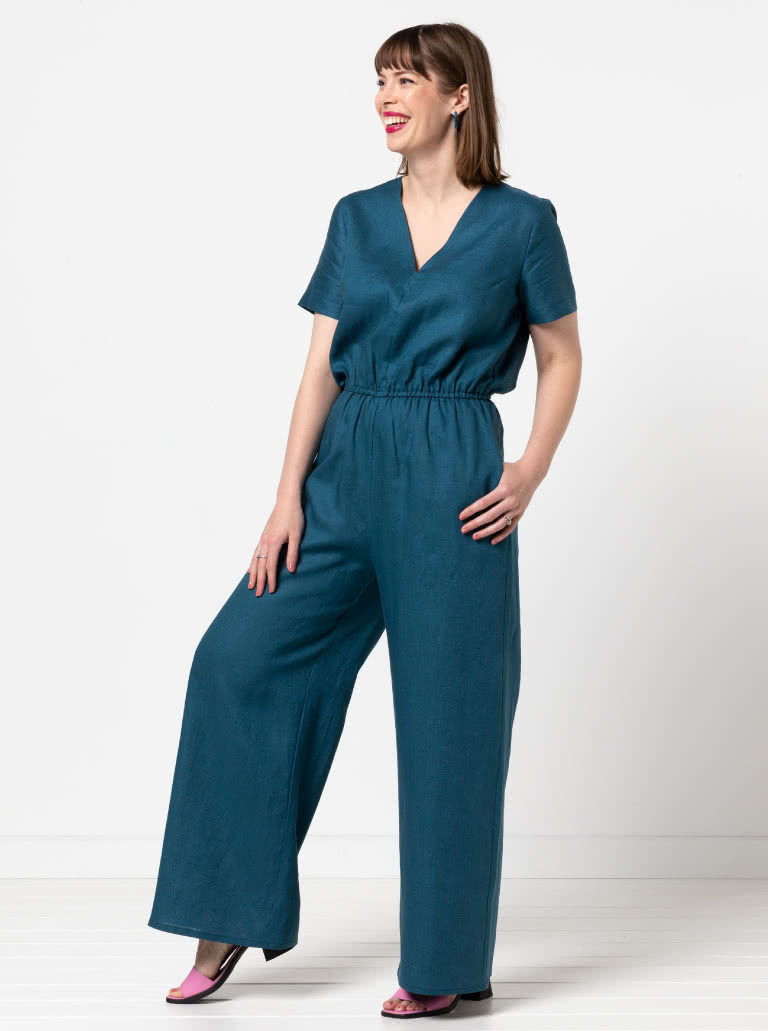

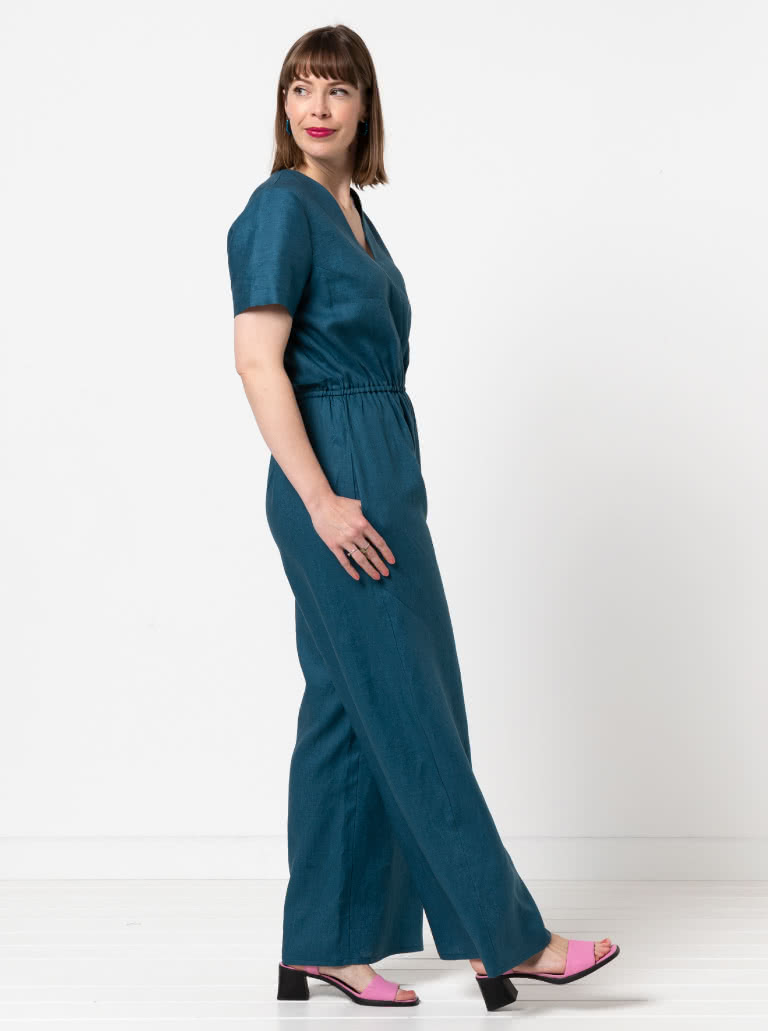

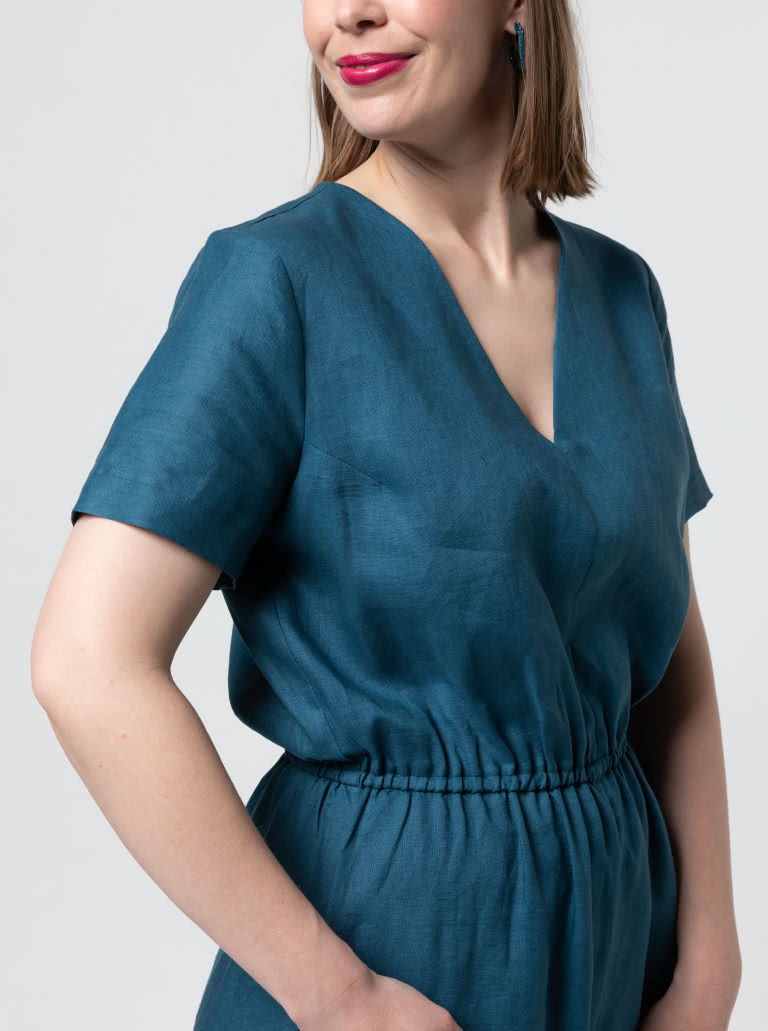

Bodice B features a V neck, short sleeves and back opening with buttons
Elastic waist
Inseam side pockets (optional)
Small armhole bust dart
Pant features wide legs
Bodice A has inside neck and armhole binding.
Bodice B has a neck facing and short sleeves.
Both bodices share the same pant pattern.
Crepe, washed linen, or even a light ponte knit.
Trims
Bodice A & B: Buttons: 5 x 17mm/26L
Elastic for waist, 6mm ( 1/4") width, refer to chart below for cut length.
Reviews (4)
4 reviews for Shannon Jumpsuit
5 out of 5
Format Reviewed: Printed Pattern - Multi-Size
D*****h(verified owner) – :
The Shannon jumpsuit is a fairly quick make. I made mine in a rayon twill. Size 8 shoulders and bust and size 10 waist and hips, and extended the top of the pocket bags to stitch to the waist. Doing up and undoing the middle back button is a challenge, but still achievable. I shortened the pants 4cm for my 160cm height. Its a comfortable flattering make
5 out of 5
Format Reviewed: Printed Pattern - Single-Size
k****d(verified owner) – :
Love this pattern. Made in a bright coloured rayon and it’s so comfortable to wear. Currently making my second one.
5 out of 5
Format Reviewed: PDF Digital Pattern - Multi-Size
r*************7(verified owner) – :
Great pattern, well explained instructions as well as a video tutorial on YouTube. I made this in a stretch fabric and was very pleased with the result. I am a size 14/16 so did the size 16 but could have got away with a 14. Will be making again.
5 out of 5
Format Reviewed: Printed Pattern - Single-Size
M*p(verified owner) – :
Great pattern again. Only alternation was the hem length otherwise perfect fit
Only logged in customers who have purchased this product may leave a review.
Garment Measurements & Fabric Estimate
Finished Pattern Measurements (cm)
sizes
4
6
8
10
12
14
16
18
20
22
24
26
28
30
Bust
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
126.0
132.0
138.0
144.0
150.0
156.0
High bust measurement (15cm from high shoulder point)
64.5
67.0
69.5
72.0
74.5
77.0
79.5
82.0
85.6
89.2
92.8
96.4
100.0
103.6
Waist
89.0
94.0
99.0
104.0
109.0
114.0
119.0
124.0
130.0
136.0
142.0
148.0
154.0
160.0
95.0
100.0
105.0
110.0
115.0
120.0
125.0
130.0
136.0
142.0
148.0
154.0
160.0
166.0
Shoulder breadth sleeveless
32.4
33.6
34.8
36.0
37.2
38.4
39.6
40.8
42.4
44.0
45.6
47.2
48.8
50.4
Shoulder breadth with sleeves
33.4
34.6
35.8
37.0
38.2
39.4
40.6
41.8
43.4
45.0
46.6
48.2
49.8
51.4
Short sleeve opening
30.9
32.1
33.3
34.5
35.7
36.9
38.1
39.3
40.9
42.5
44.1
45.7
47.3
48.9
Sleeve length
21.2
21.8
22.4
23.0
23.6
24.2
24.8
25.4
26.6
27.8
29.0
30.2
31.4
32.6
Upper arm circumference
31.4
32.6
33.8
35.0
36.2
37.4
38.6
39.8
41.4
43.0
44.6
46.2
47.8
49.4
Neck drop V neck (from high shoulder point)
21.6
21.9
22.2
22.5
22.8
23.1
23.4
23.7
24.0
24.3
24.6
24.9
25.2
25.5
Neck drop round neck (from high shoulder point)
14.6
14.9
15.2
15.5
15.8
16.1
16.4
16.7
17.0
17.3
17.6
17.9
18.2
18.5
Centre back bodice length
41.3
42.2
43.1
44.0
44.9
45.8
46.7
47.6
48.7
49.8
50.9
52.0
53.1
54.2
Total crotch length
67.0
69.0
71.0
73.0
75.0
77.0
79.0
81.0
83.0
85.0
87.0
89.0
91.0
93.0
In leg length
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
71.0
Thigh circumference (5cm under crotch)
61.1
63.9
66.7
69.5
72.3
75.1
77.9
80.7
83.9
87.1
90.3
93.5
96.7
99.9
Leg opening
72.4
73.6
74.8
76.0
77.2
78.4
79.6
80.8
82.0
83.2
84.4
85.6
86.8
88.0
Finished Pattern Measurements (inches)
sizes
4
6
8
10
12
14
16
18
20
22
24
26
28
30
Bust
33 1⁄2
35 3⁄8
37 3⁄8
39 3⁄8
41 3⁄8
43 1⁄4
45 1⁄4
47 1⁄4
49 5⁄8
52
54 3⁄8
56 3⁄4
59
61 3⁄8
High bust measurement (15cm from high shoulder point)
25 3⁄8
26 3⁄8
27 3⁄8
28 3⁄8
29 3⁄8
30 3⁄8
31 1⁄4
32 1⁄4
33 3⁄4
35 1⁄8
36 1⁄2
38
39 3⁄8
40 3⁄4
Waist
35
37
39
41
42 7⁄8
44 7⁄8
46 7⁄8
48 7⁄8
51 1⁄8
53 1⁄2
55 7⁄8
58 1⁄4
60 5⁄8
63
37 3⁄8
39 3⁄8
41 3⁄8
43 1⁄4
45 1⁄4
47 1⁄4
49 1⁄4
51 1⁄8
53 1⁄2
55 7⁄8
58 1⁄4
60 5⁄8
63
65 3⁄8
Shoulder breadth sleeveless
12 3⁄4
13 1⁄4
13 3⁄4
14 1⁄8
14 5⁄8
15 1⁄8
15 5⁄8
16 1⁄8
16 3⁄4
17 3⁄8
18
18 5⁄8
19 1⁄4
19 7⁄8
Shoulder breadth with sleeves
13 1⁄8
13 5⁄8
14 1⁄8
14 5⁄8
15
15 1⁄2
16
16 1⁄2
17 1⁄8
17 3⁄4
18 3⁄8
19
19 5⁄8
20 1⁄4
Short sleeve opening
12 1⁄8
12 5⁄8
13 1⁄8
13 5⁄8
14
14 1⁄2
15
15 1⁄2
16 1⁄8
16 3⁄4
17 3⁄8
18
18 5⁄8
19 1⁄4
Sleeve length
8 3⁄8
8 5⁄8
8 7⁄8
9
9 1⁄4
9 1⁄2
9 3⁄4
10
10 1⁄2
11
11 3⁄8
11 7⁄8
12 3⁄8
12 7⁄8
Upper arm circumference
12 3⁄8
12 7⁄8
13 1⁄4
13 3⁄4
14 1⁄4
14 3⁄4
15 1⁄4
15 5⁄8
16 1⁄4
16 7⁄8
17 1⁄2
18 1⁄4
18 7⁄8
19 1⁄2
Neck drop V neck (from high shoulder point)
8 1⁄2
8 5⁄8
8 3⁄4
8 7⁄8
9
9 1⁄8
9 1⁄4
9 3⁄8
9 1⁄2
9 5⁄8
9 5⁄8
9 3⁄4
9 7⁄8
10
Neck drop round neck (from high shoulder point)
5 3⁄4
5 7⁄8
6
6 1⁄8
6 1⁄4
6 3⁄8
6 1⁄2
6 5⁄8
6 3⁄4
6 3⁄4
6 7⁄8
7
7 1⁄8
7 1⁄4
Centre back bodice length
16 1⁄4
16 5⁄8
17
17 3⁄8
17 5⁄8
18
18 3⁄8
18 3⁄4
19 1⁄8
19 5⁄8
20
20 1⁄2
20 7⁄8
21 3⁄8
Total crotch length
26 3⁄8
27 1⁄8
28
28 3⁄4
29 1⁄2
30 3⁄8
31 1⁄8
31 7⁄8
32 5⁄8
33 1⁄2
34 1⁄4
35
35 7⁄8
36 5⁄8
In leg length
28
28
28
28
28
28
28
28
28
28
28
28
28
28
Thigh circumference (5cm under crotch)
24
25 1⁄8
26 1⁄4
27 3⁄8
28 1⁄2
29 5⁄8
30 5⁄8
31 3⁄4
33
34 1⁄4
35 1⁄2
36 3⁄4
38 1⁄8
39 3⁄8
Leg opening
28 1⁄2
29
29 1⁄2
29 7⁄8
30 3⁄8
30 7⁄8
31 3⁄8
31 3⁄4
32 1⁄4
32 3⁄4
33 1⁄4
33 3⁄4
34 1⁄8
34 5⁄8
Fabric Estimate - Bodice A
sizes
4-12
14-18
20-30
Width 148 cm (58")
2.50 m (2.75 yd)
2.90 m (3.20 yd)
3.75 m (4.10 yd)
Fabric Estimate - Bodice B
sizes
4-12
14-18
20-30
Width 148 cm (58")
2.60 m (2.85 yd)
2.90 m (3.20 yd)
4.00 m (4.40 yd)
Fuse Estimate
sizes
4-30
Width 90 cm (30")
0.55 m (0.66 yds)
Size Chart
Womens Size Charts
Please use the body measurements size charts below to determine your best size.
All Style Arc patterns are in Australian sizes.
Style Arc patterns are drafted for a B bust cup size and a height of 167cm (5'6").
Size Chart - CM
Size
A. Shoulder Breadth (cm)
B. Upper Arm Girth (cm)
C. Bust (cm)
D. Waist (cm)
E. Hip (cm)
4
34.4
26.4
77
60
83
6
35.6
27.6
82
65
88
8
36.8
28.8
87
70
93
10
38
30
92
75
98
12
39.2
31.2
97
80
103
14
40.4
32.4
102
85
108
16
41.6
33.6
107
90
113
18
42.8
34.8
112
95
118
20
44
36
118
100
124
22
45.2
37.2
124
106
130
24
46.4
38.4
130
112
136
26
47.6
39.6
136
118
142
28
48.8
40.8
142
124
148
30
50
42
148
130
154
32
51.2
43.8
156.0
139.0
162.0
34
52.4
45.6
164.0
147.0
170.0
36
53.6
47.4
172.0
155.0
178.0
Size Chart - Inches
Size
A. Shoulder Breadth (inches)
B. Upper Arm Girth (inches)
C. Bust (inches)
D. Waist (inches)
E. Hip (inches)
4
13.5
10.5
30.3
23.5
32.6
6
14
10.9
32.3
25.5
34.6
8
14.5
11.3
34.3
27.5
36.6
10
15
11.8
36.2
29.5
38.6
12
15.4
12.3
38.2
31.5
40.6
14
15.9
12.8
40.2
33.5
42.5
16
16.4
13.2
42.1
35.5
44.5
18
16.9
13.7
44.1
37.5
46.5
20
17.3
14.2
46.5
39.5
48.8
22
17.8
14.6
48.8
42
51.2
24
18.3
15.1
51.2
44.5
53.5
26
18 3⁄4
15 5⁄8
53 1⁄2
46.5
56
28
19 1⁄4
16 1⁄8
56
48.5
58 1⁄4
30
19 3⁄4
16 5⁄8
58 1⁄4
50.5
61
32
20 1⁄8
17 1⁄4
61 3⁄8
54 3⁄4
63 3⁄4
34
20 5⁄8
18
64 5⁄8
57 7⁄8
66 7⁄8
36
21 1⁄8
18 5⁄8
67 3⁄4
61
70 1⁄8
Size Conversion Table
ALPHA SIZING
AUSTRALIA
UK
US
FRANCE
ITALY
JAPAN
XXS
6
6
2
34
38
5
XS
8
8
4
36
40
7
S
10
10
6
38
42
9
M
12
12
8
40
44
11
L
14
14
10
42
46
13
XL
16
16
12
44
48
15
XXL
18
18
14
46
50
17
How Do I Know What Size I Am?
Choosing your pattern size is the most important step and we will help you determine this with these easy to follow steps.
When taking your measurements ensure that you take them against your skin and not over clothing. One can wear a comfortable bra and knickers whilst measuring, as this will provide you with the most accurate measurements.
Tape measure has to sit firmly around the points you are measuring. But be careful not to pull it too tight, as this will give you the incorrect size.
When measuring circumferences (B, C, D, E) it is important to note that the tape measure must remain parallel to the floor. It is sometimes best to take the measurements in front of a mirror; this will help you see the angle of the tape measure.
You will only require the basic body measurements to determine your pattern size which is indicated on our mannequin below:
A. Shoulder Breadth
Place the tape at the edge of the shoulder. Measure along the top of the shoulder blade/across the highest point of the shoulders to the other edge, following the natural slope and allow an extra finger for ease of any movement.
B. Upper Arm Girth
This point is taken as a circumference at your widest point of your upper arm.
C. Bust
This point is taken as a circumference parallel to the floor at the fullest part of your chest.
D. Waist
This point is taken as a circumference and taken at the smallest part of your waist.
E. Hip
This point is taken as a circumference parallel to the floor at the widest part of your hips.
